Author Topic: Saw Horse & Shave Horse
Chilterns
Administrator
Posts: 169
Permalink
Post Saw Horse & Shave Horse
on: August 25, 2012, 09:07
Quote

Making a saw horse and then a shaving horse is one of the earliest, most affordable and rewardable investments of time that the aspiring woodworker will make.


A saw horse can be made up from old plasterboard pallets cut in half then overlapped and joined together back to back using a few metal hinges. A couple of pieces of rope are added at the feet to stop the horse legs from spreading. This type of horse can hold up and secure a fairly hefty log.

The shaving horse is a little more sophisticated being made up from sawnplanks and cleaved and shaved legs. The horse illustrated above was made by Kyle Dumka but others in the county also make these e.g. Leo Zinovieff.

A good sized chopping block is needed to support an upended log so that it can be split lengthwise down to a size that can then be gripped and shaped by the shave horse.

The draw knife is then used to pair down the roughly cleaved piece of wood to form square, flat or cylindrical shaped pieces.

Once aboard the horse be prepared for total absorbtion in the task at hand and experience the wave of contentment and satisfaction that comes from making the simplest of wooden parts that are used in many wood based crafts such as chairmaking, timber framing, wheelmaking, etc.


A sliding seat is useful in making the shave horse adjustable for different people but also acts as a good device with which to clear wood shavings that will fall from the work piece.


When making octagonal tapered pegs for timber-framing its usful to cut a shallow groove in one or two faces of the barrel clamp to clasp the square peg ready for drawing it down into an octagon.


Plans for making horses can be found in most wood craft books such as those by Mike Abbott and Richard Tabor. If you would like some help or guidance to make any of these devices then please register and post your query here.

Chilterns

davidabel
Newbie
Posts: 1
Permalink
Post Re: Saw Horse & Shave Horse
on: November 3, 2014, 13:21
Quote

Does anybody know where I can purchase a shaving horse please?

Ken Hume
Administrator
Posts: 639
Permalink
Post Re: Saw Horse & Shave Horse
on: November 3, 2014, 18:00
Quote

Hi David,

Click on named [blue] email links above to send an enquiry or you could also post on The Bodgers web forum.

Regards

Ken Hume ET OWG

Ken Hume
Administrator
Posts: 639
Permalink
Post Re: Saw Horse & Shave Horse
on: May 17, 2016, 05:54
Quote

Hi David,

A flat pack shave horse can also be purchased from Lie Nielson in North America.


Ken Hume

Ken Hume
Administrator
Posts: 639
Permalink
Post Re: Saw Horse & Shave Horse
on: September 26, 2021, 07:40
Quote

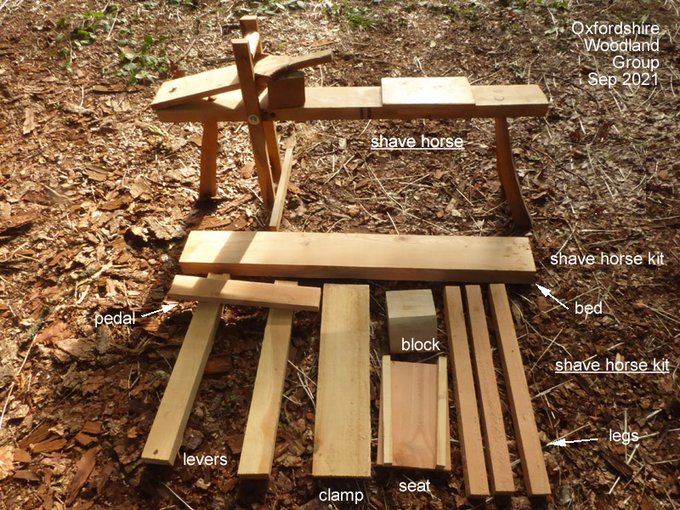

OWG are making a batch of shave horses to support their community based work with Headway UK. We have decided to make these available either as a kit of parts (£50+pp) or fully assembled (£275 ex woodland) for all to enjoy making greenwood items (spoons, chair legs, pegs, etc.)

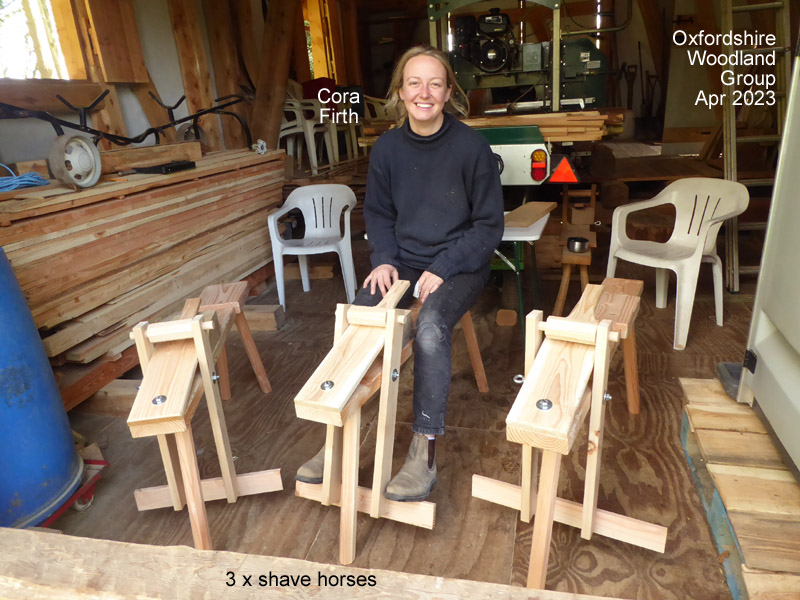

Cora Firth makes our shave horses which are a delight both to behold and use.


To purchase your own horse please contact Cora or OWG Trustees

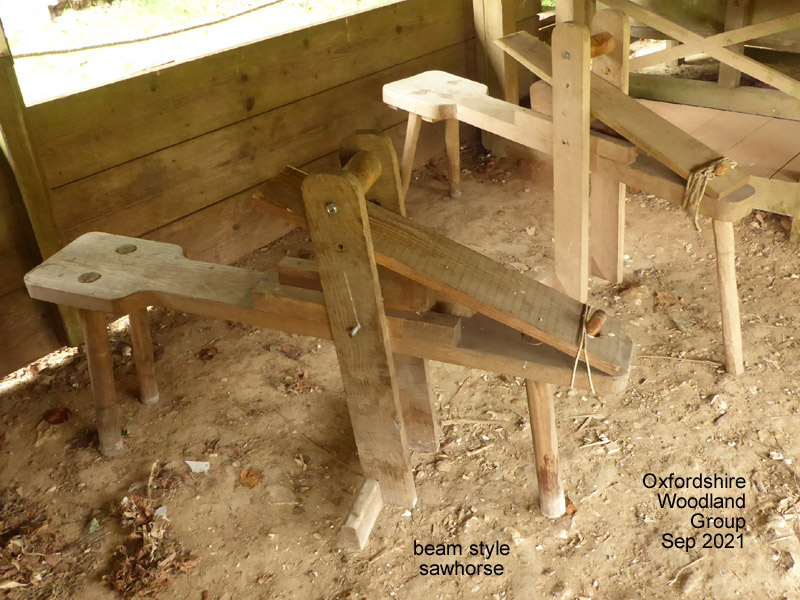

A variant on the OWG plank saw horse is made from wider stock plank material.


Alternatively, a simple narrow beam can be employed with an attached wide seat featuring tripod legs.


Ken Hume
Administrator
Posts: 639
Permalink
Post Re: Saw Horse & Shave Horse
on: September 29, 2021, 09:02
Quote

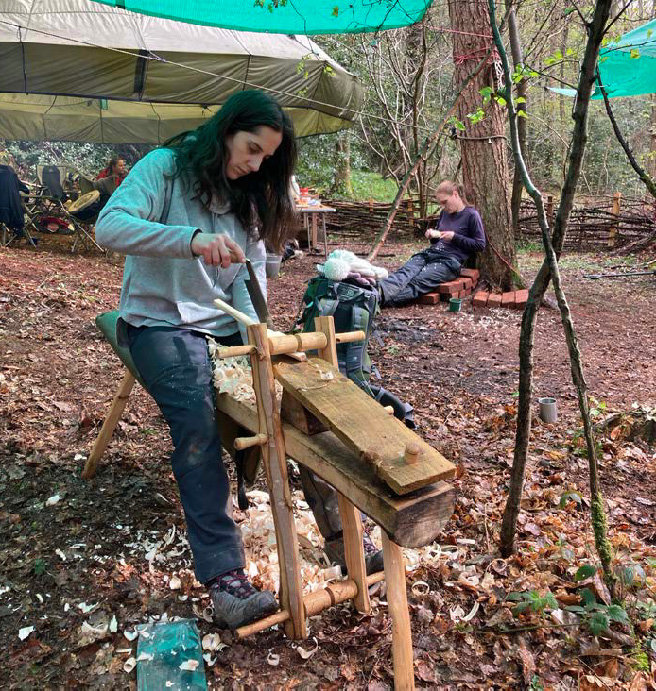

Seen in Living Woods magazine no 60 - summer 2021 a picture of Caroline Bales (Instagram @wishwell_woods ) green wood working shave horse.


This is very similar to the OWG shave horse but makes greater use of turned wood components.

What comes first - the shave horse or the pole lathe ?

Ken Hume
Administrator
Posts: 639
Permalink
Post Re: Saw Horse & Shave Horse
on: May 22, 2022, 07:54
Quote

Seen at the Berkshire Bodgers woodland centre near Hungerford

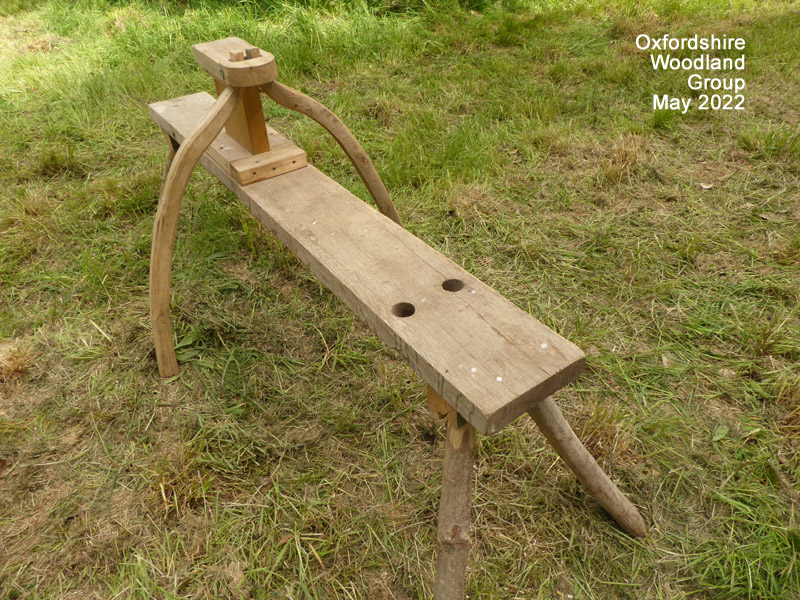

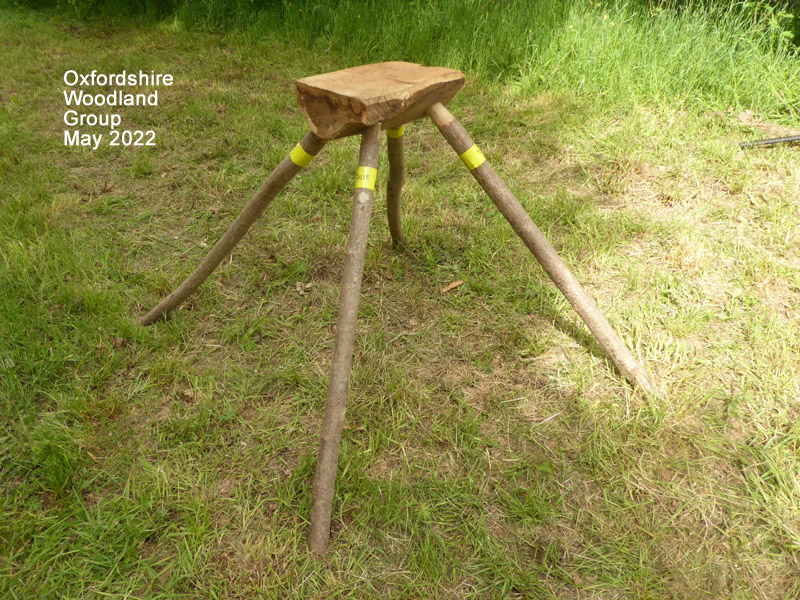

A rather peculiar spoon maker's vice


A spoon makers anvil

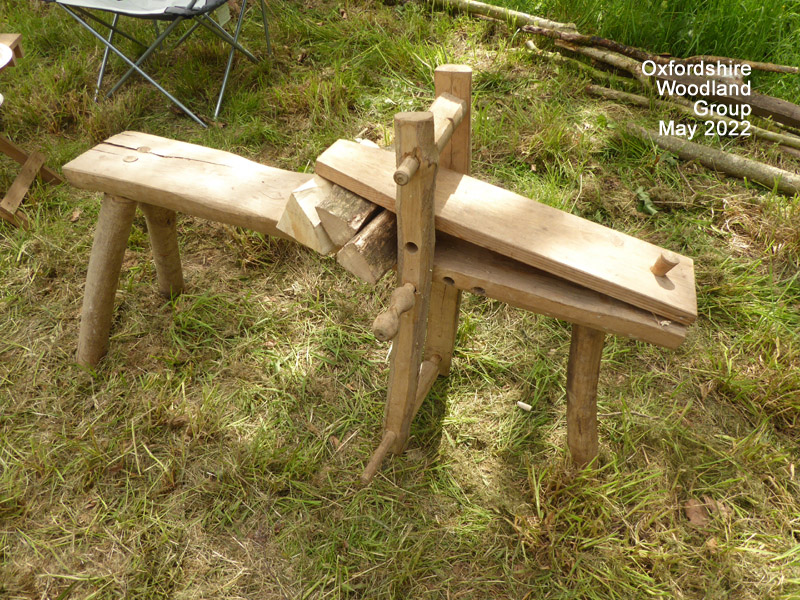

A bodgers shave horse


A chair maker's pole lathe.


Ken Hume
Administrator
Posts: 639
Permalink
Post Re: Saw Horse & Shave Horse
on: May 26, 2024, 07:15
Quote

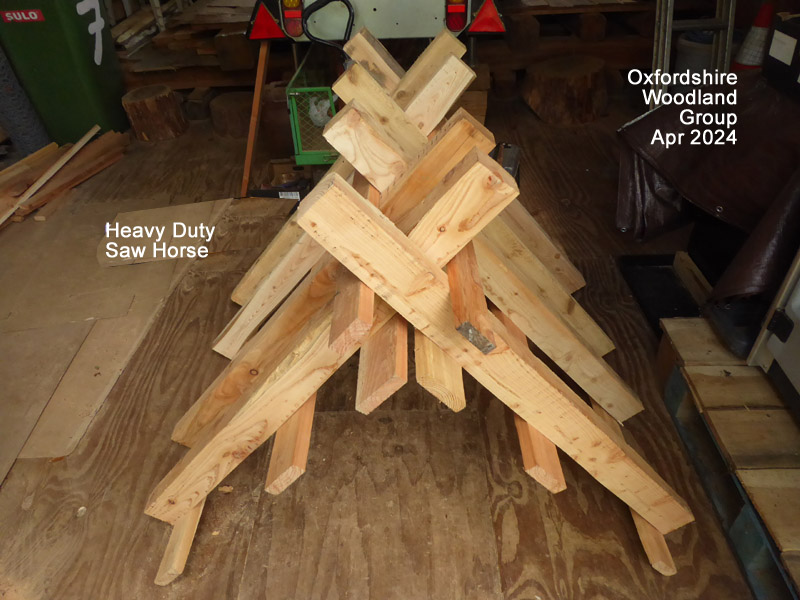

Oxfordshire Woodland Group volunteer Neil Warren made this heavy duty saw horse from larch timbers converted on the Woodland Mills mobile saw.

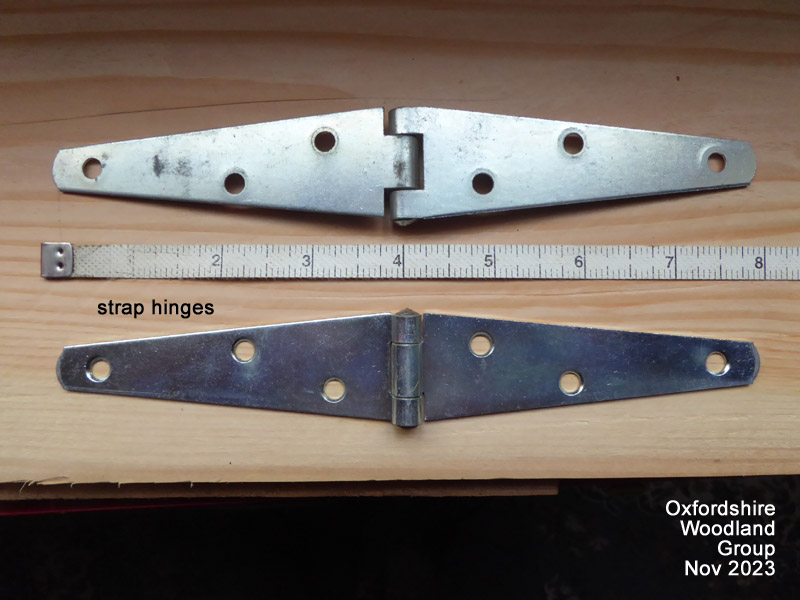

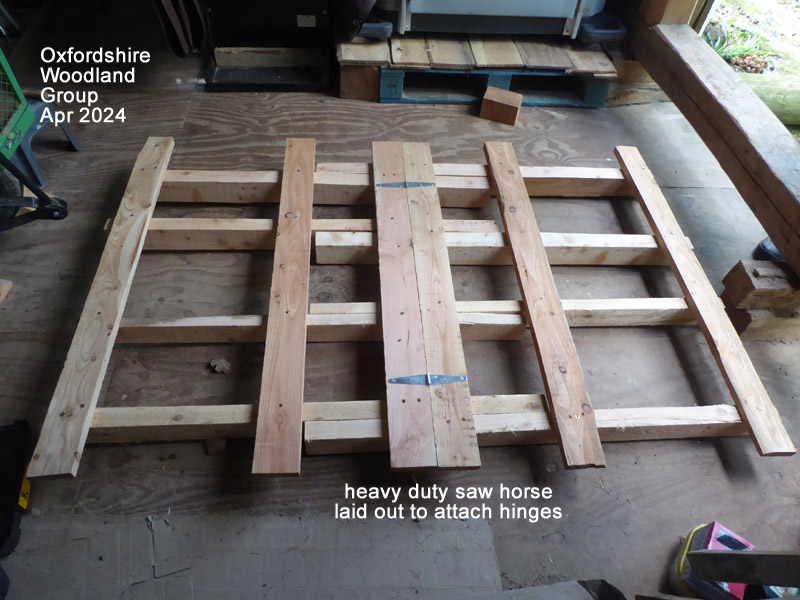

The strap hinges needed are 8" long

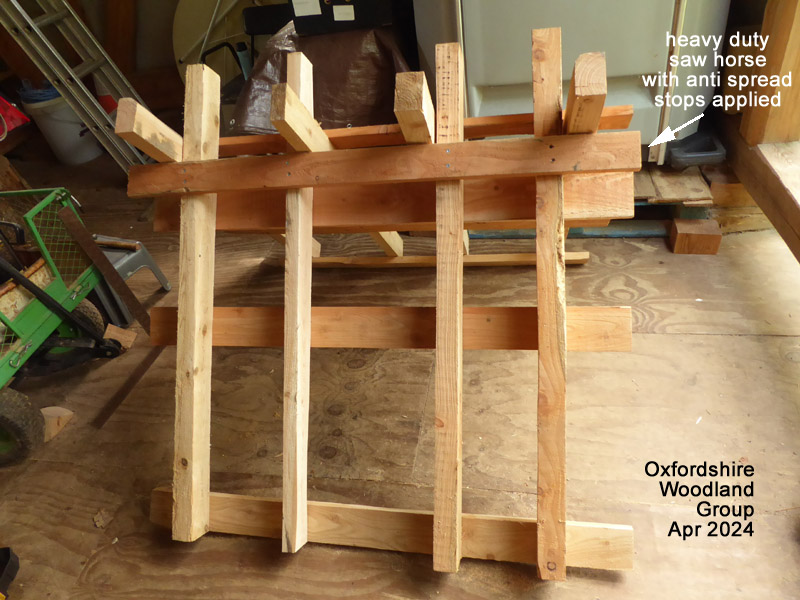

The sides frames of the saw horse are then stood up a set at the required operators angle and stop planks are afixed to prevent spread of the horse.


.

The saw horse was completed by trimming protruding rails on the sawhorse


The sawhorse has now been taken home to process firewood.
